2211-K-2RS-TV-C3 NKE
Suffix description
- K Tapered Bore, Taper 1:12
- 2RS Rubber Seals At Each Side Of The Bearing
- TV Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
- C3 Internal Clearance Larger Than Normal
Detailed

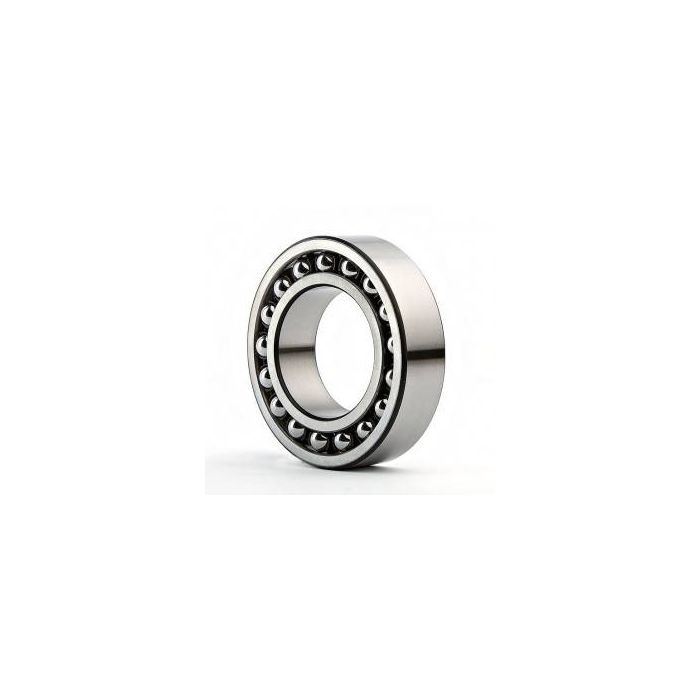

The 2211-K-2RS-TV-C3 NKE belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type with double-sided seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 2211-K-2RS-TV-C3 NKE highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
Main specifications
- Brand NKE
- Item Number 2211-K-2RS-TV-C3 NKE
- Category Self Aligning Ball Bearing Double Row
Weight and Dimensions
- Inner (d) MM 55
- Outer (D) MM 100
- Width (B) MM 25
- Inner (d) Inch 2.1654
- Outer (D) Inch 3.937
- Width (B) Inch 0.9843
- Weight (kg) 0.792
Product Properties
- Bore K - 1:12 Tapered Bore (Standard for Most Types)
- Seal 2RS - Rubber Seal on Two Sides
- Cage Type P - Plastic Molded Cage
- Radial Internal Play C3 Internal Play (Higher than Cn)
- Precision Standard Precision
- Lubrication Standard Lubrication
- Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
