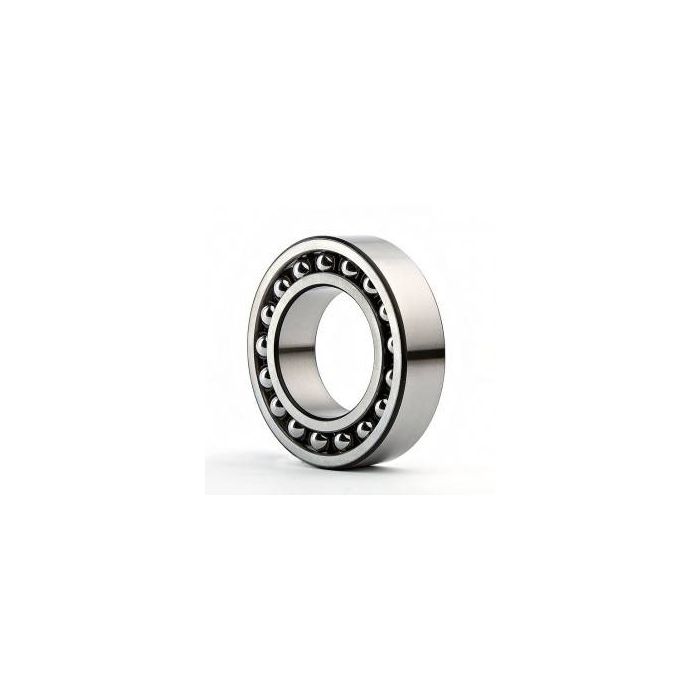

2213-TV NKE
Suffix description
- TV Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
Detailed
The 2213-TV NKE belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 2213-TV NKE highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
Main specifications
- Brand NKE
- Item Number 2213-TV NKE
- Category Self Aligning Ball Bearing Double Row
Weight and Dimensions
- Inner (d) MM 65
- Outer (D) MM 120
- Width (B) MM 31
- Inner (d) Inch 2.5591
- Outer (D) Inch 4.7244
- Width (B) Inch 1.2205
- Weight (kg) 1.46
Product Properties
- Bore C - Cylindrical Bore
- Seal No Seal
- Cage Type P - Plastic Molded Cage
- Radial Internal Play Cn Normal Internal Play
- Precision Standard Precision
- Lubrication Standard Lubrication
- Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
