2218-C3 NKE

$1,474.44
In stock
SKU
2218-C3 NKE

Suffix description

  • C3 Radial Internal Clearance Greater Than Normal

Detailed

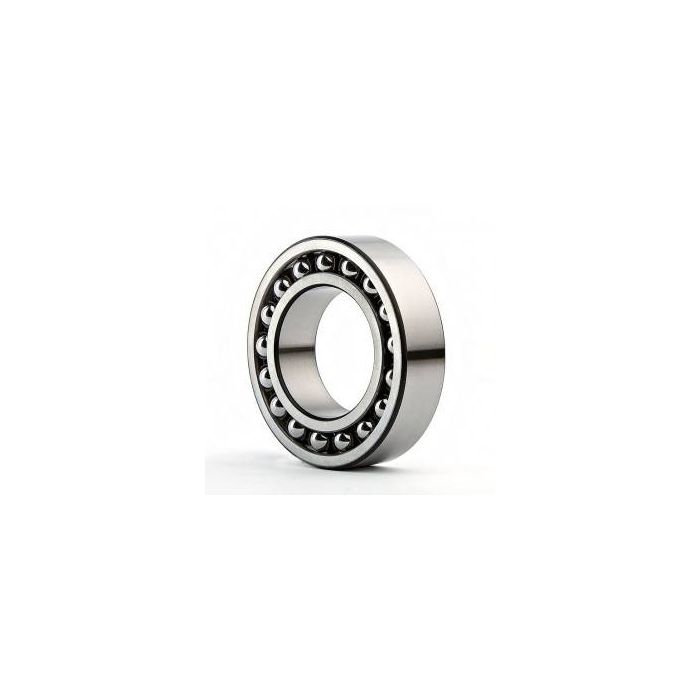

The 2218-C3 NKE belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.

These features make the 2218-C3 NKE highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.

Main specifications

  • Brand NKE
  • Item Number 2218-C3 NKE
  • EAN 7316570390810
  • Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

  • Inner (d) MM 90
  • Outer (D) MM 160
  • Width (B) MM 40
  • Inner (d) Inch 3.5433
  • Outer (D) Inch 6.2992
  • Width (B) Inch 1.5748
  • Weight (kg) 3.34

Product Properties

  • Bore C - Cylindrical Bore
  • Seal No Seal
  • Cage Type S - Steel or Standard Cage
  • Radial Internal Play C3 Internal Play (Higher than Cn)
  • Precision Standard Precision
  • Lubrication Standard Lubrication
  • Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
