2218-K-C3 NKE
Suffix description
- K Tapered Bore, Taper 1:12
- C3 Internal Clearance Larger Than Normal
Detailed

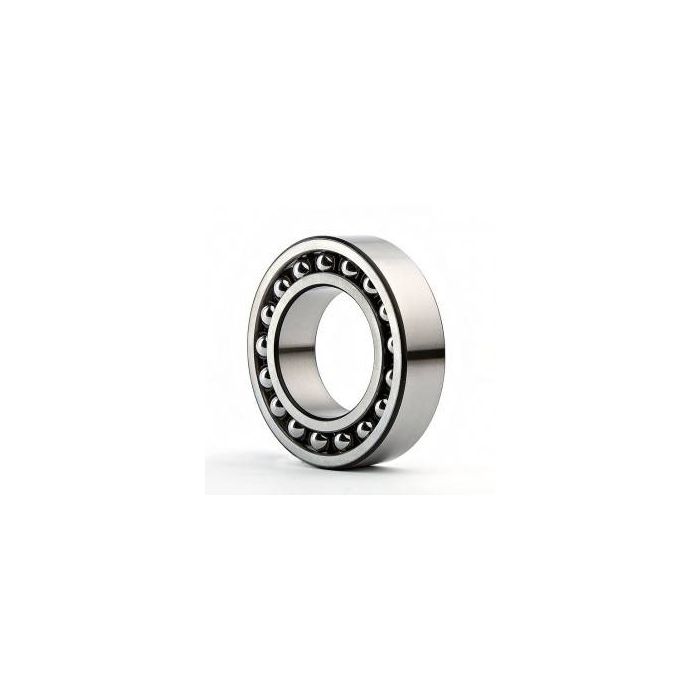

The 2218-K-C3 NKE belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 2218-K-C3 NKE highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
Main specifications
- Brand NKE
- Item Number 2218-K-C3 NKE
- Category Self Aligning Ball Bearing Double Row
Weight and Dimensions
- Inner (d) MM 90
- Outer (D) MM 160
- Width (B) MM 40
- Inner (d) Inch 3.5433
- Outer (D) Inch 6.2992
- Width (B) Inch 1.5748
- Weight (kg) 3.136
Product Properties
- Bore K - 1:12 Tapered Bore (Standard for Most Types)
- Seal No Seal
- Cage Type S - Steel or Standard Cage
- Radial Internal Play C3 Internal Play (Higher than Cn)
- Precision Standard Precision
- Lubrication Standard Lubrication
- Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
