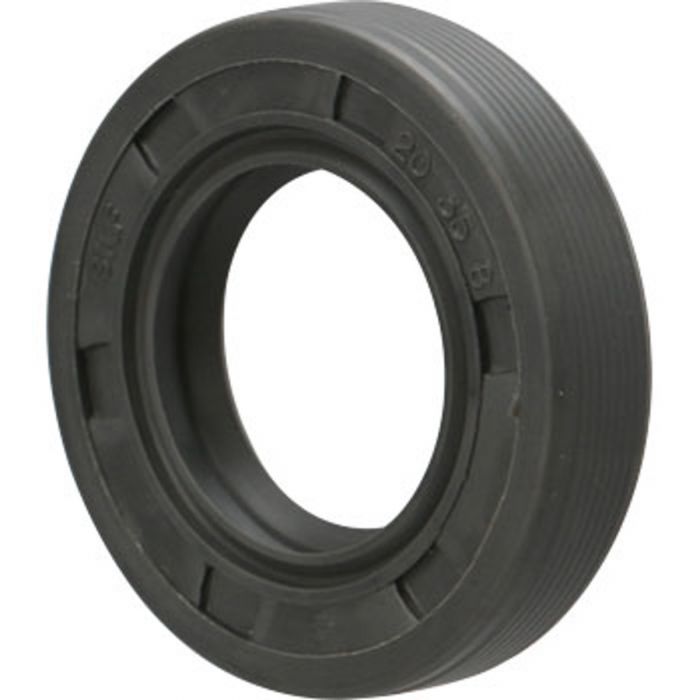

22X35X7 HMSA10 RG SKF
$13.72
In stock
SKU
22X35X7 HMSA10 RG SKF
Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease
Description
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
Dimensions
| Housing bore diameter | 1.378 in |
| Seal width | 0.276 in |
| Shaft diameter | 0.866 in |
Performance
| Maximum operating temperature | 212 °F |
| Minimum operating temperature | -40 °F |
| Rotational speed | 3 900 r/min |
Properties
| Auxiliary lip | Yes |
| Design | HMSA10 |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter | Rubber metal reinforced |
| Unit system | Metric |
Technical Specification
| Type of outside diameter |
Rubber metal reinforced
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
HMSA10
|
| Compliance with standard |
ISO 6194, DIN 3760
|
Dimensions
| d1 |
0.866 in
|
Shaft diameter |
|---|---|---|
| D |
1.378 in
|
Housing bore diameter |
| b |
0.276 in
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °F
|
| Operating temperature |
max. 212 °F
|
| Operating temperature, short periods |
max. 248 °F
|
| Circumferential speed |
max. 887.795 ft/min
|
| Rotational speed |
max. 3 900 r/min
|
| Pressure differential |
4.351 psi
|
