23220-E1-XL-K-TVPB-C3 FAG
Suffix description
- E1 Increased Capacity Design
- XL X-Life
- K Tapered Bore, Taper 1:12
- TVPB Solid Window Cage Made From Glass Fibre Reinforced Polyamide, Guidance On Inner Ring
- C3 Internal Clearance Larger Than Normal
Product description

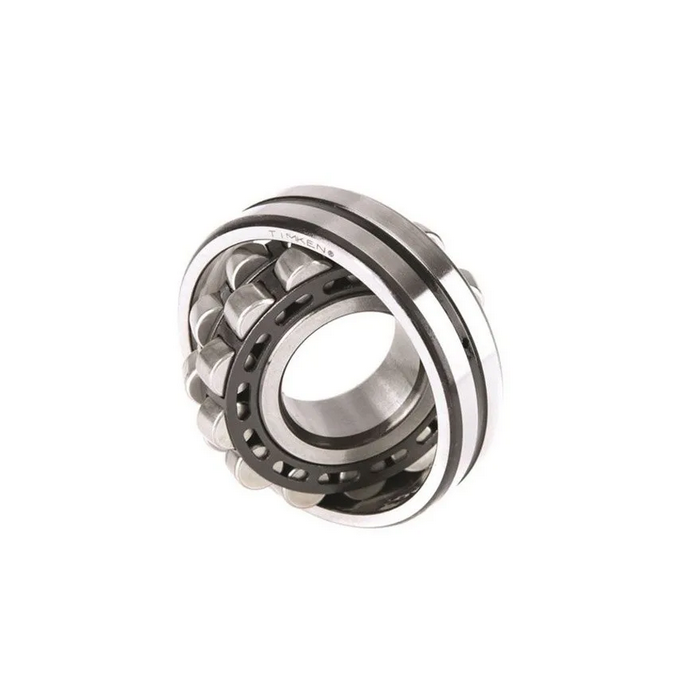

The 23220-E1-XL-K-TVPB-C3 FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
The 23220-E1-XL-K-TVPB-C3 FAG is an X-life type bearing. X-life bearings provide better performance than normal spherical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal spherical roller bearings.
Specifications
- Brand FAG
- Item Number 23220-E1-XL-K-TVPB-C3 FAG
- Also known as 0190015330030
23220-E1-K-TVPB-C3 - EAN 4026677828989
- Category Spherical Roller Bearing
Weight and Dimensions
- Inner (d) MM 100
- Outer (D) MM 180
- Width (B) MM 60,3
- Inner (d) Inch 3.937
- Outer (D) Inch 7.0866
- Width (B) Inch 2.374
- Weight (kg) 6.4
Product Properties
- Bore K - 1:12 Tapered Bore (Standard for Most Types)
- Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
- Seal No Seal
- Cage Type P - Plastic Molded Cage
- Radial Internal Play C3 Internal Play (Higher than Cn)
- Precision Standard Precision
- Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
- Vibrating Screen Execution Non Vibrating Screen Execution
Data from Schaeffler (medias)
- Radial Static Load Rating C0r (N) 660000
- Radial Dynamic Load Rating Cr (N) 560000
- ECLASS number 23-05-09-11
- ECLASS2 number 23-05-09-11
- Medias description Spherical roller bearings 232..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
