6203-2Z-C3 SKF

$39.48
In stock
SKU
6203-2Z-C3 SKF

Suffix description

  • 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
  • C3 Internal Clearance Larger Than Normal

Detailed

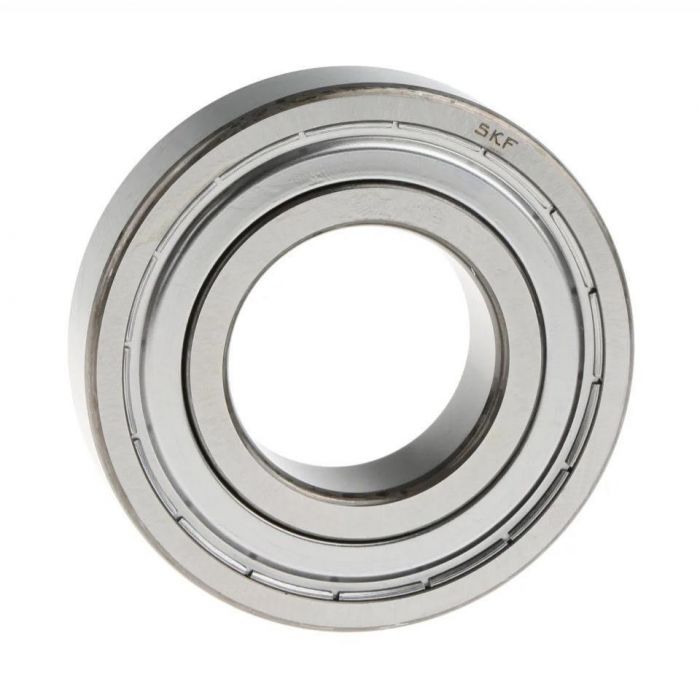

The 6203-2Z/C3 SKF is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6203-2Z/C3 SKF is suitable for high speeds and can operate with low noise.

The dimensions of the 6203-2Z/C3 SKF are: Bore (or inner diameter) 17mm, Outer diameter 40mm and Width (or thickness) 12mm.

6200 serie
The 6203-2Z/C3 SKF is part of the popular 6200 serie which contain extra light ball bearings and are perfect for limited space applications.The 6200 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.

Internal play
The C3 in the product name means that this bearing has a higher (internal) clearance than normal. The C3 clearance is most frequently used for this type of bearings. The extra internal clearance allows expansion due to high speeds or temperatures.

About SKF
SKF is the most renowned producer of bearings worldwide. SKF stands for outstanding quality and has been a forerunner in the production of bearings and related items for years. By buying a SKF bearing you are sure to buy top quality.

Main specifications

  • Brand SKF
  • Item Number 6203-2Z/C3 SKF
  • EAN 7316570634440
  • Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  • Inner (d) MM 17,00
  • Outer (D) MM 40,00
  • Width (B) MM 12,00
  • Weight (kg) 0.065

Product Properties

  • Bore C - Cylindrical Bore
  • Seal ZZ/2Z - Steel Seal on Two Sides
  • Cage Type S - Steel or Standard Cage
  • External Modification No External Modification
  • Radial Internal Play C3 Internal Play (Higher than Cn)
  • Precision Standard Precision
  • Lubrication Standard Lubrication
  • Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  • Special Treatment No Special Treatment
