6203-2Z SKF
Suffix description
- 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
Detailed

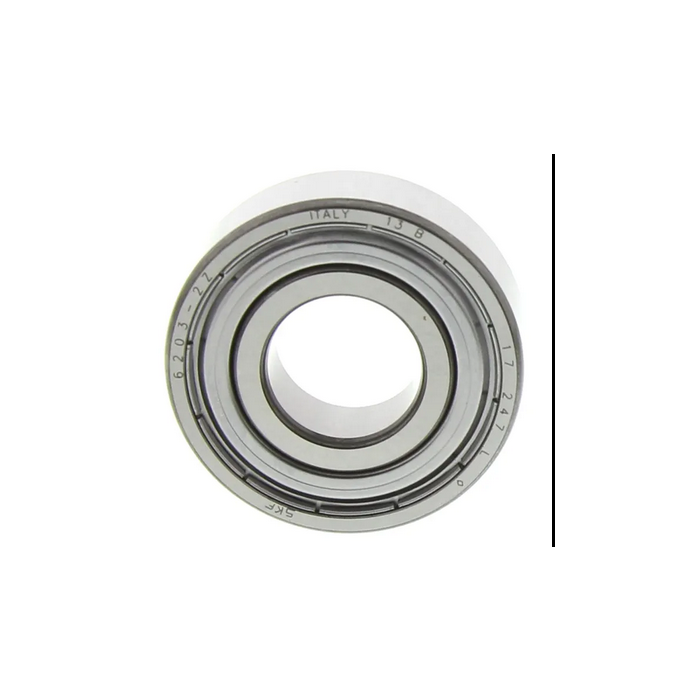

The 6203-2Z SKF is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.
The 6203-2Z SKF is suitable for high speeds and can operate with low noise.
The dimensions of the 6203-2Z SKF are: Bore (or inner diameter) 17mm, Outer diameter 40mm and Width (or thickness) 12mm.
6200 serie
The 6203-2Z SKF is part of the popular 6200 serie which contain extra light ball bearings and are perfect for limited space applications.The 6200 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.
Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.
About SKF
SKF is the most renowned producer of bearings worldwide. SKF stands for outstanding quality and has been a forerunner in the production of bearings and related items for years. By buying a SKF bearing you are sure to buy top quality.
Main specifications
- Brand SKF
- Item Number 6203-2Z SKF
- EAN 7316577758743
- Category Deep Groove Ball Bearings Single Row
Weight and Dimensions
- Inner (d) MM 17,00
- Outer (D) MM 40,00
- Width (B) MM 12,00
- Weight (kg) 0.065
Product Properties
- Bore C - Cylindrical Bore
- Seal ZZ/2Z - Steel Seal on Two Sides
- Cage Type S - Steel or Standard Cage
- External Modification No External Modification
- Radial Internal Play Cn Normal Internal Play
- Precision Standard Precision
- Lubrication Standard Lubrication
- Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
- Special Treatment No Special Treatment
